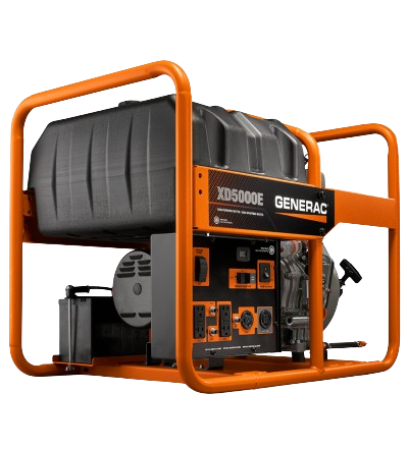

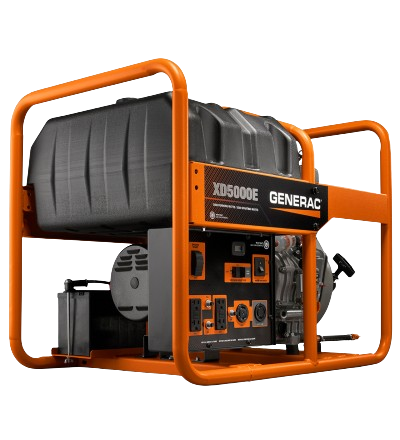

Generac Electric Start Portable Diesel Generator (CARB), XD5000E- 5000 Watt

Description

The Generac XD5000E is a high-performance portable diesel generator designed for durability and efficiency. Powered by a Yanmar LW Series 435cc air-cooled engine, this generator delivers 5,000 running watts and 5,500 starting watts, making it ideal for heavy-duty applications. With a 12-gallon fuel tank, it offers an impressive run time of up to 32.4 hours at 50% load. Its integrated lifting eye and robust steel cradle make it easy to transport and secure on the job site. Features include electric start, multiple outlets, and a user-friendly control panel for optimal convenience and reliability.

Key Features

• Integrated Lifting Eye: Allows for easy transport and secure placement on the job site.
• Long Run-Time: 12-gallon fuel tank provides up to 32.4 hours of operation at 50% load.
• Yanmar LW Series Engine: 435cc air-cooled, direct injection diesel engine for industrial-grade performance.
• Electric Start: Single-touch electric start with recoil backup for easy startup.
• Multiple Outlets: Includes (2) 120-Volt 20-Amp GFCI Duplex Outlets (NEMA 5-20R), (1) 120/240-Volt TwistLock Outlet (NEMA L14-30R), and (1) 120-Volt TwistLock Outlet (NEMA L5-30R).
• Circuit Breakers: Features (2) 20-Amp 1P push button circuit breakers, a 30-Amp push button circuit breaker, and a 20-Amp two-pole main circuit breaker.
• Hour Meter: Tracks maintenance intervals for timely upkeep.

Technical Specs

• Brand: Generac

• Engine Displacement: 435cc
• Running Wattage: 5,000 Watts
• Starting Wattage: 5,500 Watts
• AC Voltage: 120/240V
• Frequency: 60 Hz
• Amperage: 41.7A / 20.8A
• Harmonic Distortion: Less than 6%
• Engine Type: Air-Cooled 4-Cycle Vertical Cylinder Diesel
• Engine RPM: 3,600 RPM
• Recommended Oil: SAE 10W-30
• Lubrication Method: Pressure
• Fuel Shut Off: On Fuel Tank
• Starting Method: Electric with Recoil Backup
• Low Oil Shutdown Method: Low Pressure
• Neutral Bonded to Ground: Yes
• Start Switch Type: Start/Run/Off
• Switch Location: On Control Panel
• Fuel Gauge: On Cap
• Fuel Tank Capacity: 12 Gallons
• Run Time at 50% Load: 32.4 Hours
• Wheel Type: 10.4 in. Solid
• Dimensions: 33.1 in. (L) x 22.5 in. (W) x 25.6 in. (H)
• Product Weight: 24.5 lbs
