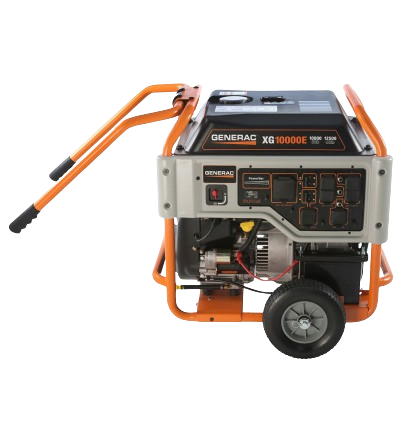

Generac 120 - 240-Volt Electric Start Portable Generator XG10000E 530cc 10,000-Watt

Description

The Generac XG10000E is a robust electric start portable generator designed to deliver reliable power for a range of applications. With a 10,000-watt running capacity and a powerful 530cc OHVI engine, this generator is built to handle demanding tasks with ease. It features a user-friendly design with covered outlets, an illuminated control panel, and a durable frame for portability and strength. Ideal for both residential and commercial use, the XG10000E ensures dependable performance and convenient operation.

Key Features

• OHVI Engine: Features full pressure lubrication and a spin-on automotive style oil filter for extended engine life.
• Covered Outlets: Protects outlets from environmental factors and rugged conditions.
• Low-Oil Pressure Shutdown: Automatically protects the engine from damage due to low oil levels.
• PowerBar: Monitors and displays power usage for better management.
• Hour Meter with Maintenance Resets: Tracks usage and reminds you of maintenance schedules.
• Heavy-Duty Wheels: Never flat wheels ensure reliable portability across various terrains.
• Illuminated Control Panel: Provides improved visibility in low-light conditions.
• Durable Frame: Full-wrap, heavy-duty frame tubing enhances strength and longevity.
• User-Friendly Design: Engine controls are conveniently placed for easy operation and startup.

Technical Specs

• AC Rated Output Running Watts: 10,000 Watts
• AC Maximum Output Starting Watts: 12,500 Watts
• Rated AC Voltage: 120/240 VAC
• Rated AC Frequency: 60 Hz
• Fuel Type: Gasoline
• Receptacles:
  • (1) 120/240V 50A 14-50R Outlet
  • (1) 120/240V 30A L14-30R Twist Lock Outlet
  • (1) 120/240V 30A L5-30R Twist Lock Outlet
  • (2) 120V 20A GFCI 5-20R Duplex Outlets
• Rated 120/240 VAC Amperage: 83.3/41.7 Amps
• Engine Displacement: 530cc
• Engine RPM: 3,600 RPM
• Recommended Oil: 10W-30 / SAE 30
• Lubrication Method: Oil Pump
• Automatic Voltage Regulation (AVR): Yes
• Choke Location: On Engine
• Fuel Shut Off: On Control Panel
• Starting Method: Electric
• Battery Type: 12VDC
• Battery Wall Charger Adapter: Included
• Low Oil Shutdown: Low Pressure
• Neutral Bonded to Ground: Yes
• Start Switch Type: On/Off/Start
• Switch Location: On Engine
• Fuel Gauge: Built-in Tank
• Fuel Tank Capacity: 10 Gallons (38 Liters)
• Run Time at 50% Load: 10 Hours
• Handle Style: Folding Interlocked
• Wheel Type: 10" Semi-Solid Wheels
• Maintenance Kit: Included
• Dimensions:
  • Length: 30 in. (762 mm)
  • Width: 29.5 in. (749 mm)
  • Height: 31 in. (787 mm)
  • Extended Length: 50 in. (1270 mm)
  • Carton Dimensions:
    • Length: 34 in. (864 mm)
    • Width: 25.5 in. (641 mm)
    • Height: 33 in. (838 mm)
• Unit Weight: 300 lbs. (136 kg)
