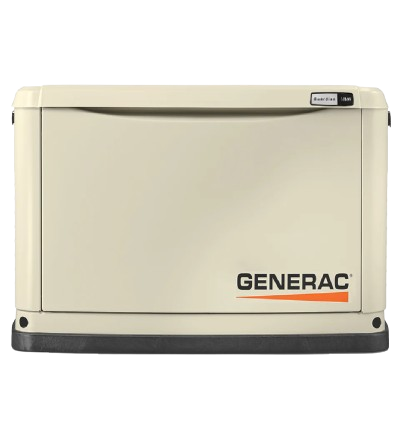

Generac Guardian Standby Generator System (200A Service Disconnect + AC Shedding) w- Wi-Fi, 11kW Aluminum

Description

The Generac Guardian Standby Generator System offers robust protection for your home and family during power outages. With an 11kW (LPG) / 10kW (NG) capacity, this system ensures reliable backup power. It features Digital Power Management (DPM) to prevent overloads and includes Mobile Link Wi-Fi Remote Monitoring, allowing you to monitor generator status from a smartphone, tablet, or PC. The 200-Amp Service Entrance Rated Automatic Smart Switch facilitates quick and cost-effective installation and is ideal for homes with multiple air conditioners.

Key Features

• 11kW (LPG) / 10kW (NG) Capacity: Provides ample power for essential home systems.
• Digital Power Management (DPM): Protects against overload and allows smart control of up to 4 A/C units.
• Mobile Link Wi-Fi Remote Monitoring: Monitor generator status remotely using a smartphone, tablet, or PC (requires internet connection and wireless router).
• 200-Amp Service Entrance Rated Automatic Smart Switch: Facilitates easier and more affordable installation by connecting between the main meter and service panel.
• Load Shedding: Built-in feature allows prioritization of essential loads and lock-out of non-essential loads.
• Full Pressure Lubrication System: Requires oil change every 2 years for maintenance.
• Clean Burning Fuel Options: Operates on natural gas or LP (vapor) with low emissions.
• Automatic Digital Voltage Regulation: Ensures stable power with less than 5% Total Harmonic Distortion (THD).
• Evolution 2.0 Digital Controller: Features a multilingual, 2-line LCD display for straightforward operation.
• Durable All-Aluminum Enclosure: RhinoCoat powder-coated finish protects against the elements.

Technical Specs

• Brand: Generac
• Surge Wattage: 11,000 Watts
• Rated Wattage: 11,000 Watts
• Engine Displacement: 530cc
• Engine Brand: Generac OHVI
• Starting System: 12V Auto Start
• Voltage: 120/240V
• Phase: Single
• Fuel Type: LP/Natural Gas
• NG Fuel Consumption (50% Load): 107 ft³/hr
• NG Fuel Consumption (100% Load): 159 ft³/hr
• LP Fuel Consumption (50% Load): 1.22 gal/hr
• LP Fuel Consumption (100% Load): 1.97 gal/hr
• Rated Amperage: 45.8A
• Decibel Rating at 7m: 63 dBA
• Transfer Switch Amperage: 200A
• Enclosure: Aluminum
• Mounting Pad Material: Composite
• Low Oil Alert/Shutdown: Yes
• Transfer Switch Style: Service Disconnect
• ATS Load Shedding: Built-In
• ATS Poles: 2 Poles
• ATS Service Disconnect: Yes
• Cooling System: Air Cooled
• Dimensions: 48 in. (L) x 25.1 in. (W) x 28.5 in. (H)
• Product Weight: 348 lbs.
