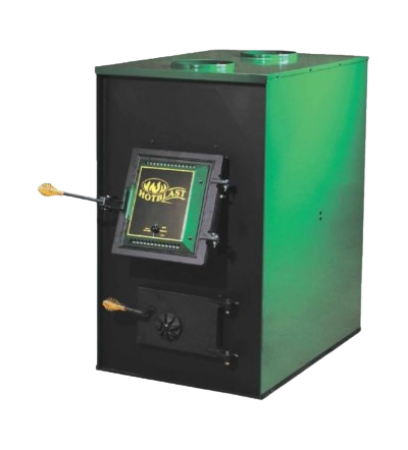

US Stove 1557M HotBlast Coal Furnace with Dual Blowers, 2,500 sq. ft.

Description

The US Stove 1557M HotBlast Coal Furnace is designed as an add-on unit for your existing HVAC ductwork, providing seamless integration with your current furnace system. This coal-only furnace is capable of heating homes up to 2,500 sq. ft., delivering up to 139,600 BTUs of heat. Equipped with twin 550 CFM blowers, it efficiently circulates warm air throughout your space. Built with a firebrick-lined plate steel firebox and finished in a brilliant red color, the 1557M is as durable as it is visually appealing. With easy connections to your existing ductwork using two 8-inch heat outlets, it ensures smooth installation.

Key Features

• High Heat Output: Produces up to 139,600 BTUs, ideal for heating spaces up to 2,500 sq. ft.
• Dual 550 CFM Blowers: Ensures efficient air circulation and uniform heating throughout the home.
• Firebrick-Lined Firebox: Enhances combustion efficiency and extends the lifespan of the furnace.
• Large Coal Capacity: Can hold up to 70 lbs. of coal for extended burn times.
• Easy Ductwork Connection: Two 8-inch diameter heat outlets make it easy to integrate with your existing HVAC system.
• Heavy-Duty Components: Includes cast iron doors, grates, and liners for durability.
• Separate Ash Door: Comes with a removable ash pan for easy cleaning and maintenance.
• Manual Damper Control: Allows for precise airflow and intake control.
• Removable Shaker Grates: Feature replaceable shaker grates, with handle included for easy operation.
• Not Approved for Mobile or Modular Homes: Designed exclusively for standard residential use.
• Warranty: 1-year warranty on electrical parts and a 3-year warranty on the firebox.

Technical Specs

• Brand: US Stove
• Product Type: Multi-Fuel Furnace
• Heating Capacity: 2,500 sq. ft.
• BTU Output: 139,600 BTU
• Blower Airflow Rate: Dual 550 CFM blowers
• Flue Collar Size: 6 in.
• Firebox Dimensions: 20 in. W x 30.5 in. D x 19.5 in. H
• Fuel Type: Coal
• Hopper Capacity: 70 lbs. coal
• Material: Plate Steel with firebrick lining
• Dimensions:
  • Height: 40.25 in.
  • Length: 53.5 in.
  • Width: 24.25 in.
• Color: Red and Black
• Installation Location: Indoor, connected to existing ductwork
• Warranty: 1 year on electrical parts, 3 years on the firebox
• Special Features: Heavy-duty cast iron grates, removable ash pan, manual damper control, dual 550 CFM blowers
• Approval: Not approved for use in mobile or modular homes
