Ashley Wood Furnace, 3,000 sq. ft. EPA Certified

Description:

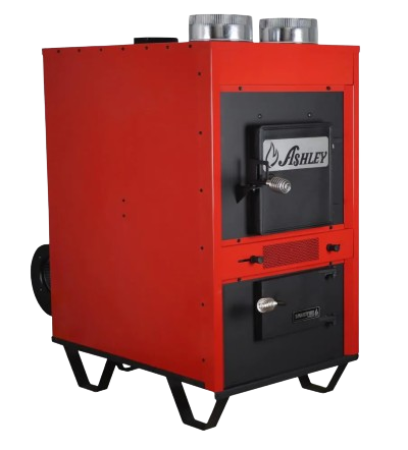

The Ashley 1660E Add-On Wood Furnace integrates seamlessly with your existing HVAC system to provide efficient heating. EPA Certified for clean burning and compliant with current EPA guidelines, this furnace features twin 800 CFM blowers and delivers up to 180,000 BTUs, capable of heating up to 3,000 sq. ft. The unit boasts a firebrick-lined plate steel firebox, surrounded by stylish red-painted steel. Connection to your existing ductwork is straightforward with the 13 x 18 in. heat outlet. It includes front-mounted air controls for precise burn adjustments and utilizes re-burn technology, eliminating the need for costly catalysts. Installation materials are not included.

Key Features:

• EPA Certified: Compliant with current EPA guidelines for clean burning.
• Twin 800 CFM Blowers: Ensures redundancy and substantial air flow.
• Firebrick Lined Firebox: Enhances efficiency and heating capacity.
• Separate Ash Door: Features a removable dump pan for easy ash disposal.
• Heavy-Duty Construction: Equipped with extra heavy-duty cast-iron doors and grates.
• Front-Mounted Air Controls: Allows for precise burn settings.
• Re-Burn Technology: No need for expensive catalysts, simplifying maintenance.

Technical Specs:

• Area Covered: Up to 3,000 sq. ft.
• BTUs: 180,000
• Blower: Twin 800 CFM blowers
• Brand: Ashley
• CARB Compliant: No
• Flue Collar Size: 6 in.
• Log Size: Up to 28 in.
• Mount Style: Freestanding
• Power Type: Wood
• Product Height: 46-1/2 in.
• Product Length: 51 in.
• Product Width: 26-1/2 in.
• Product Type: Wood Furnace
• Installation Materials Included: No (e.g., floor protector, chimney connector, thimble, radiation shield, flue)
• Not Approved For: Mobile or Modular homes
