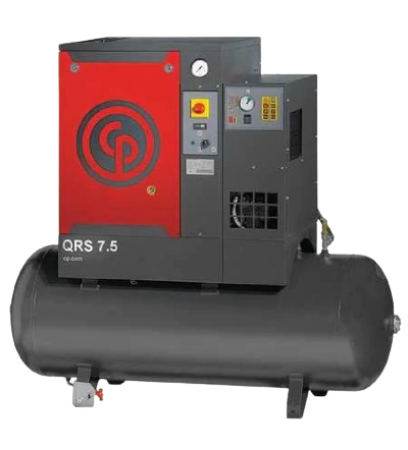

CHICAGO PNEUMATIC QRS 7.5 HPD Rotary Screw Air Compressor w/Air Dryer

Description

The CHICAGO PNEUMATIC QRS 7.5 HPD Rotary Screw Air Compressor is designed for automotive aftermarket applications such as paint and body shops, tire shops, and dealer service centers. It operates quietly (less than 65 dB) and requires minimal maintenance compared to air-cooled reciprocating compressors. This unit features a 60-gallon horizontal ASME tank, a refrigerated air dryer to remove moisture, and a fully packaged and wired setup for easy installation. It includes a TEFC motor, adjustable V-belt drive, auto start/stop functionality, and multiple safety features.

Key Features

• Quiet Operation: Rated the quietest in the industry, operating at less than 65 dB.
• High Performance: 7.5 HP motor, 230 volts; provides 22.04 CFM at 90 PSI.
• Continuous Duty: 100% continuous operation even when fully loaded.
• Air Dryer Included: Refrigerated dryer removes moisture from the air during use.
• Low Maintenance: No valve rework or replacing bearings or rods required.
• Fully Equipped: Includes a TEFC motor, adjustable V-belt drive, full voltage motor starter, auto start/stop, moisture drain, air shutoff valve, and safety relief valves.
• Durability: Features a 60-gallon ASME horizontal tank and sound-attenuating enclosures.

Technical Specs

• Item Number: 45365
• Brand: Chicago Pneumatic
• Manufacturer’s Warranty: 12 months parts / 12 months labor
• Ship Weight: 455 lbs
• CFM at 90 PSI: 22.04
• Max PSI: 150
• Volts: 230
• Amps: 19.5
• HP: 7.5
• Air Tank Size: 60 gallons
• Tank Description: Horizontal
• Pump Type: Rotary screw, oil injected, air cooled, belt-driven
• Air Outlet Size: 1/2 inch
• Portable or Stationary: Stationary
• Dimensions (L x W x H): 56 x 23 x 50 inches
