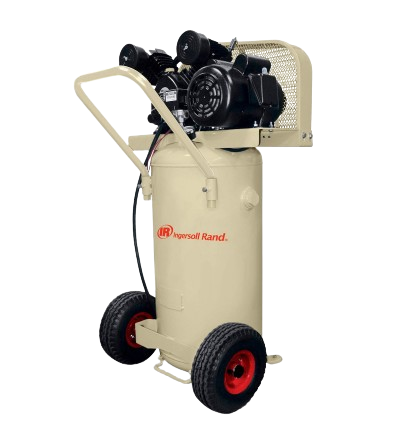

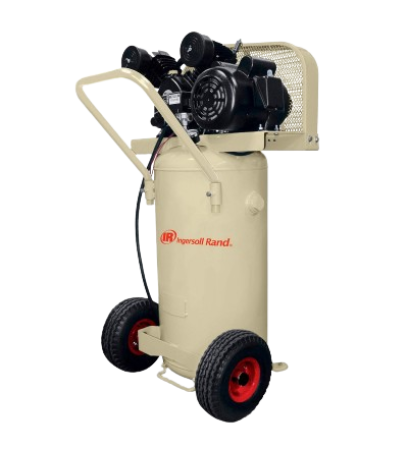

Ingersoll Rand P1.5IU-A9 Portable Air Compressor,20 Gal,vertical

Description

The Ingersoll Rand P1.5IU-A9 Portable Air Compressor is a high-performance, vertical tank compressor designed for efficiency and durability. Featuring a 2 HP motor and a 20-gallon tank, this compressor delivers a consistent airflow rate of 5 CFM at 135 psi. Its oil-lubricated pump ensures smooth operation, while the compact vertical design allows for easy placement in various settings. With a sound level of 80 dBA, it offers a balance of power and quiet operation. Ideal for garage or workshop use, this compressor is designed to meet your air compression needs effectively.

Key Features

• Vertical Tank Design: Space-saving vertical tank with a 20-gallon capacity.
• Powerful Motor: 2 HP motor delivers efficient performance with 5 CFM airflow at 135 psi.
• Oil-Lubricated Pump: Ensures smooth operation and longer pump life.
• Compact Dimensions: Measures 46 inches (L) x 25 inches (W) x 35 inches (H) for easy placement.
• Quiet Operation: Operates at 80 dBA for a quieter work environment.
• Single-Phase Operation: Designed for standard 1-phase electrical systems.
• Durable Construction: Built to withstand demanding tasks with a robust design.

Technical Specs

• Horsepower: 2 HP
• Tank Capacity: 20 gallons
• Dimensions:
  • Length: 46 inches
  • Width: 25 inches
  • Height: 35 inches
• Air Flow Rate: 5 CFM
• Pressure Rating: 135 psi
• Pump Type: Oil-lubricated
• Number of Phases: 1 phase
• Number of Stages: 1 stage
• Frequency Rating: 60 Hz
• Outlet Connection Size: 1/4 inch
• Sound Level: 80 dBA
• Hazardous Material: No
• ECCN: EAR99
